Monitor activ DB Technologies DVX DM 12TH

Monitor activ DB Technologies DVX DM 12TH

Referinta: A03DBT007

ID: 30704

0
DB Technologies

12 700,00 lei  inclusiv tva

Mail Trimis
Mail netrimis
Cere pret special!   Ai gasit acest produs mai ieftin in alta parte? Click aici!
  • Consultanta profesionista - peste 15 ani experienta
  • Livrare Rapida
  • Garantie 2 ani
  • Drept retur 14 zile
  • Transport gratuit

Informatii
Data sheet
Recenzii

Informatii

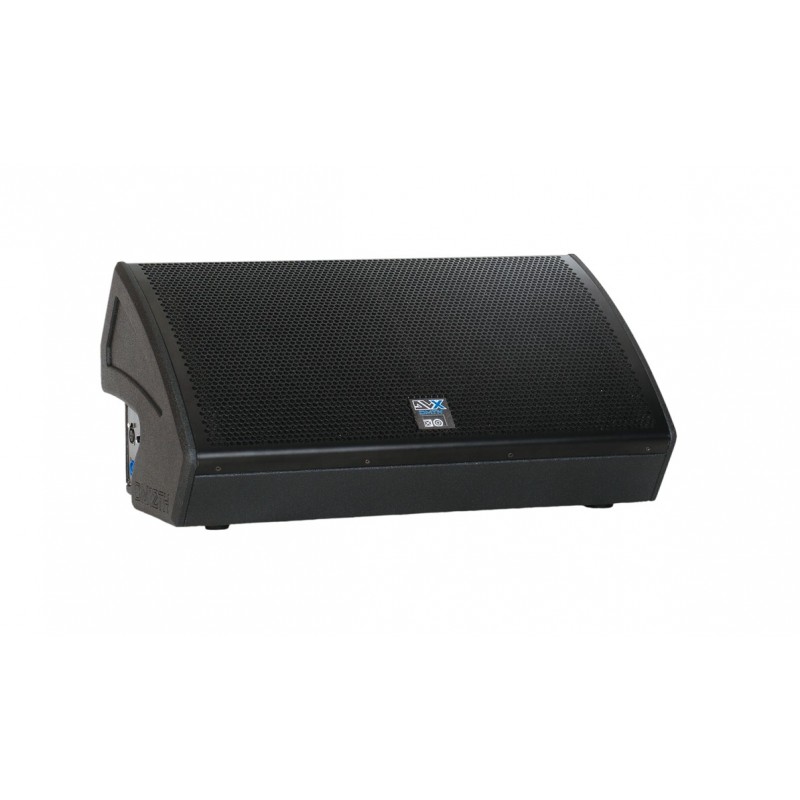

Monitor activ DB Technologies DVX DM 12TH.

DVX DM TH: it's not just an upgrade of the well-known series DVX DM digital monitors, it is rather a brand new line. These products are exclusively aimed to fulfill the requirements of musicians and stage engineers.



The DVX TH series is equipped with neodymium heavy-duty woofers, 12" or 15", with 4" voice coil. Beside it features top-class neodymium compression drivers, 1500W RMS Digipro amplifiers and Switched Mode Power Supply with PFC. The products' features provide the musicians with an excellent listening, even on the most demanding and loud stages. DVX TH ensures a sound quality and intelligibility without compromise.



The models DVX DM12 TH and DM15 TH can reach elevate SPL levels, maintaining both a linear response and an impressive punch. At the same time it will keep unaltered the DVX DM's typical dimensions and versatility.

Technical Data
Speaker Type: 2-Way Active Stage Monitor
Acoustical data
Frequency Response [-6dB]: 63 - 16.000 Hz
Frequency Response [-10dB]: 59 - 18.000 Hz
Max SPL: 136 dB
HF: 1.4"
Type HF: Neodymium
Voice Coil HF: 3"
Horn: Aluminum rotatable horn
LF: 12"
Type LF: Neodymium
Voice Coil LF: 4"
Directivity: 90x40°
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
Power RMS: 1500 W
Peak Power: 3000 W
LF: 750 W RMS @4 Ohm
HF: 375 W RMS @8 Ohm
Cooling: Single fan
Processor
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 kHz
System Presets: Flat EQ, TH EQ
Limiter: Dual active, RMS/Peak, Thermal
Crossover Frequency LF-HF: 1070 Hz
Slope MF-HF: 24 dB/Octave
Input
Mechanics
Housing: Multiplex birch plywood - Polyurea painting

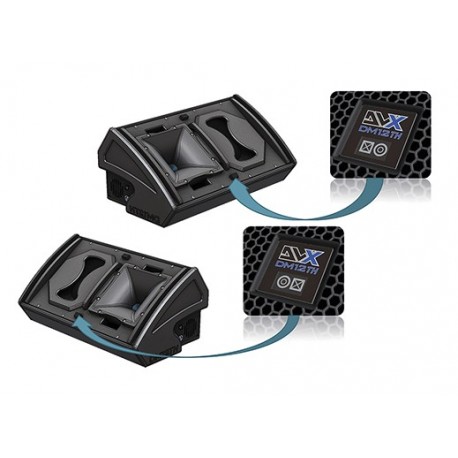

Advanced features: Rotatable front panel (left or right monitor customization)
Angles Up: 35°, 55°
Handles: 1x left side, 1x right side
Width: 670 mm (26.4 in)
Height: 325 mm (12.8 in)
Depth: 405 mm (15.9 in)
Weight: 24.5 kg (54 lbs)


Numar cai : 2
Putere maxima (W) : 3000
Putere garantata (W) : 1500
Raspuns in frecventa (Hz) : 63-16000
Sensibilitate (dB) : 136
Greutate (kg) : 24.5
Unitate vinzare : buc

Data sheet

Numar cai2.00
Raspuns in frecventa (Hz)63.00
Sensibilitate (dB)136.00
Putere maxima (W)3000.00
Putere garantata (W)1500.00
