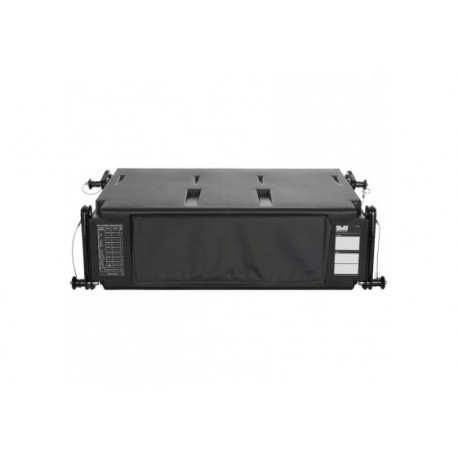

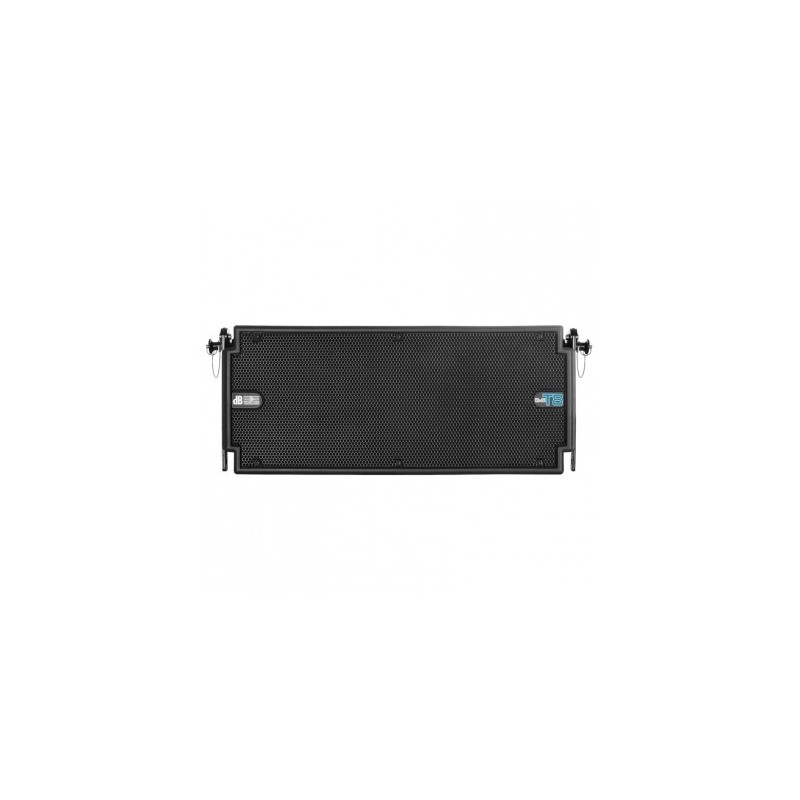

Boxa activa tip line array DB Technologies DVA T8

Referinta: A05DBT009

ID: 31340

0
DB Technologies

9 575,00 lei  inclusiv tva

Mail Trimis
Mail netrimis
Cere pret special!   Ai gasit acest produs mai ieftin in alta parte? Click aici!
  • Consultanta profesionista - peste 15 ani experienta
  • Livrare Rapida
  • Garantie 2 ani
  • Drept retur 14 zile
  • Transport gratuit

Informatii
Data sheet
Recenzii

Informatii

Boxa activa tip line array DB Technologies DVA T8



DB TECHNOLOGIES DVA T8 boxa activa tip line array, in 3 cai. Echipata cu un difuzor de 8", un difuzor de 6.5" si doua drivere de 1". Putere: 700 W. Banda de frecvente: 66 Hz - 18 kHz. SPL maxim: 132 dB. Dispersie (O x V): 100 x 15 grade. Procesor DSP de 24 biti / 96 kHz incorporat. Dimensiuni (I x L x A): 240 x 580 x 327 mm. Greutate: 14.2 kg.





Technical Data
Speaker Type: 3-Way Active Line Array Module
Acoustical data
Frequency Response [+/- 3dB]: 66 - 18.000 Hz
Max SPL: One Unit: 132 dB
HF: 2x1 "
Voice Coil HF: 1.4 "
Directivity: 100x15 ° Single unit
MF: 1x 6.5 "
Voice Coil MF: 2 "
LF: 8 "
Voice Coil LF: 2.5 "
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
HF Amp: 175 W RMS
MF Amp: 175 W RMS
LF Amp: 350 W RMS
Cooling: Convection
Processor
Controller: DSP 56 bit with double precision filters
AD/DA Converter: 24 bit/96 kHz
System Presets: 9, (8xHF and Low-mid correction)
Limiter: Dual Active Limiter Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF: 1900 Hz
Slope MF-HF: 24 dB/Octave
Crossover Frequency LF-MF: 400 Hz
Slope LF-MF: 24 dB/Octave
Input
Signal Input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Network: RDnet remote control RJ45 connector IN/OUT
Power Socket: 1x Powercon In 1x Powercon Out
Voltage Range: 90 - 240 V
Mechanics
Housing: Polypropylen PP Metal reinforced
Housing Design: Trapezoidal 15°
Rain Cover: Included
Rigging Points: Integrated rigging hardware
Width: 580 mm (23.2 in)
Height: 240 mm (9.6 in)
Depth: 327 mm (13.08 in)
Weight: 14,2 kg (31.3 lbs)

Numar cai : 3
Putere garantata (W) : 700
Raspuns in frecventa (Hz) : 66-18000
Sensibilitate (dB) : 132
Dimensiune (mm) : 240 x 580 x 327
Unitate vinzare : buc

Manual PDFManual PDF

Data sheet

Raspuns in frecventa (Hz)66.00
Sensibilitate (dB)132.00
Putere garantata (W)700.00
Dimensiune (mm)240.00
