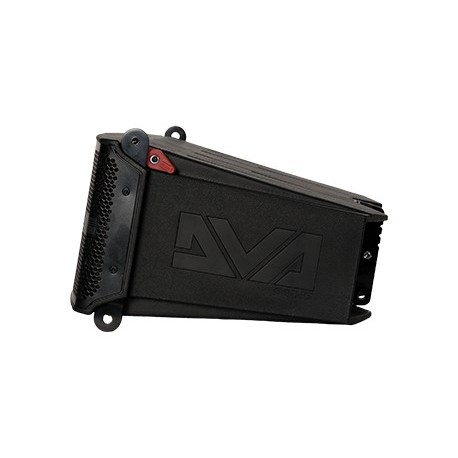

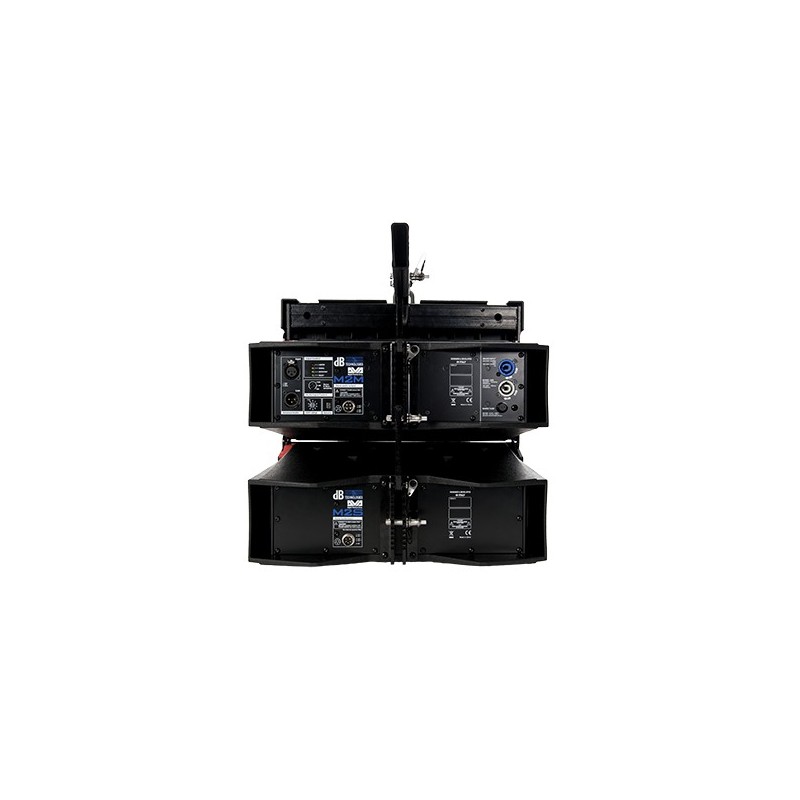

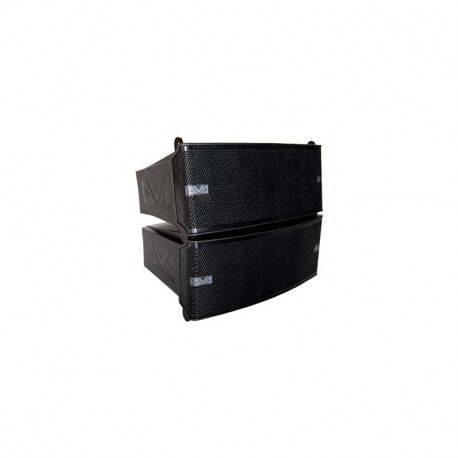

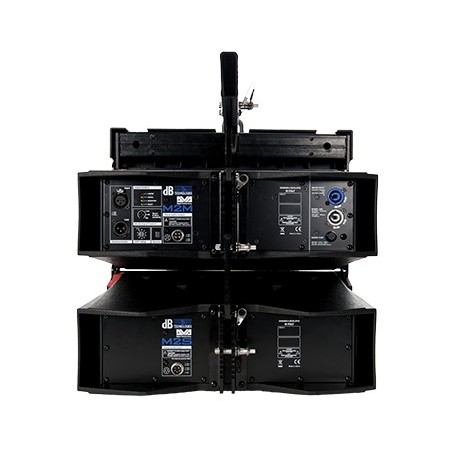

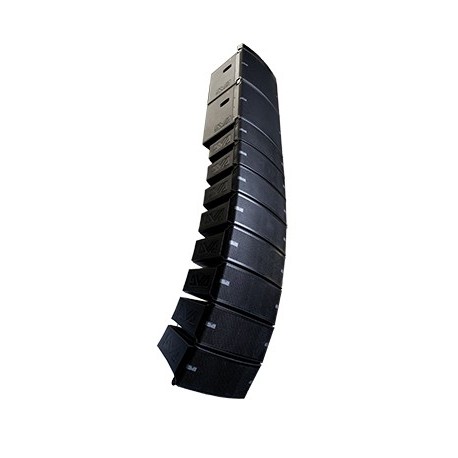

Sistem Line Array DB Technologies DVA M2M+M2S.

DVA se numara printre cele mai bine cotate serii de boxe active line array, iar calitatea acestora se trage atat din tehnologiile folosite, cat si experienta pe care o ofera DB Technologies. DVA M2M/M2S este un sistem compus din doua boxe active, master si slave, ambele echipate cu cate doua difuzoare de 6.5" si doua drivere de 1", fiind alimentate de o amplificare DigiProG3, ce ofera, in total, 400 W. Impreuna cu o rezolutie cuprinsa intre 68Hz si 20KHz si un SPL de pana la 126 dB, aceste boxe active pot completa orice aplicatie profesionala si vor oferi un sunet cat mai clar si cat mai puternic pentru public. Boxele includ procesare DSP de 56 de biti si preset-uri pentru modificarea sunetului, in functie de amplasare.

Technical Data
Speaker Type M2M: 2-Way Active Master Line Array Module
Speaker Type M2S: 2-Way Slave Line Array Module
Acoustical data
Frequency Response [-6dB]: 78 - 19.000 Hz
Frequency Response [-10dB]: 68 - 20.000 Hz
Max SPL: 126 dB per unit
HF: 2x1"
Type HF: Neodymium
Voice Coil HF: !"
LF: 2x6.5"
Type LF: Neodymium
Voice Coil LF: 1.5"
Directivity: 90x15°
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class D
RMS Power HF Amp: 200 W (100 W + 100 W)
RMS Power LF Amp: 200 W (100 W + 100 W)
Cooling: Convection
Processor
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 kHz
System Presets: 9 presets (8x HF and Low-Mid corrections and 1x for service use)
Limiter: Multiband, RMS/Peak, Thermal
Crossover Frequency LF-HF: 1800 Hz
Slope LF-HF: 24 dB/Octave
Input
Signal Input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Power Supply: 400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket: 1x PowerCon In 1x PowerCon Out
Signal Input M2S: 1 Custom connector
Mechanics
Housing: Polypropylen PP
Handles: 2x back side
Fittings: Integrated hardware with fast lock mechanics
Splay Angles: 0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°
Width: 460 mm (18.1 in)
Height: 190 mm (7.5 in)
Depth: 345 mm (13.6 in)
Weight M2M: 7.6 kg (16.8 lbs)
Weight M2S: 7.1 kg (15.7 lbs)

Data sheet

Numar cai2.00
Raspuns in frecventa (Hz)68.00
Sensibilitate (dB)126.00
Putere garantata (W)400.00
