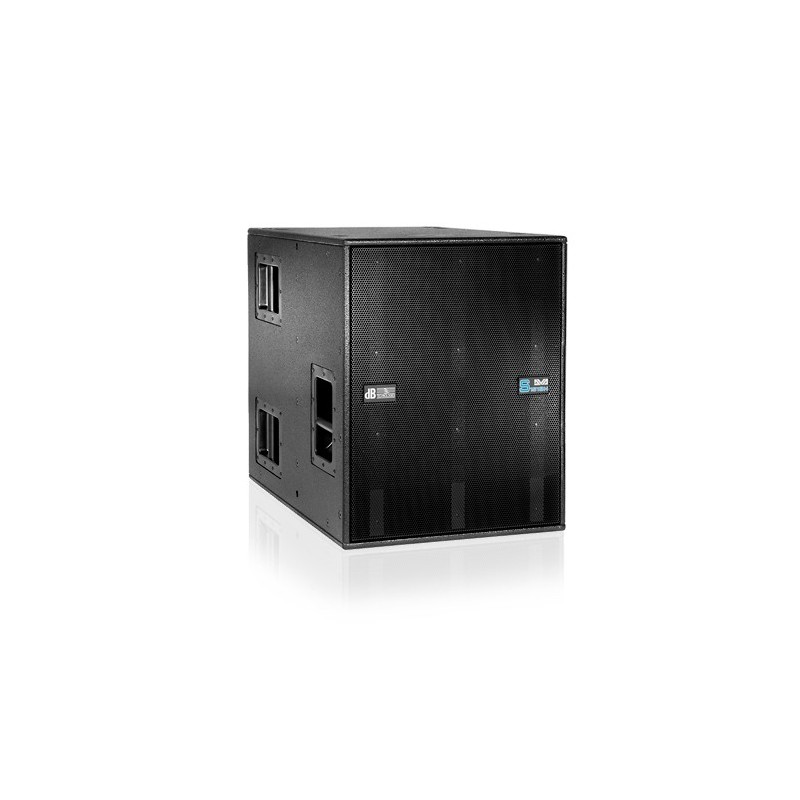

Subwoofer activ tip line array DB Technologies DVA S1518N.



Technical Data
Speaker Type: Active Bandpass Subwoofer
Acoustical data
Frequency Response [+/- 3dB]: 39 - 120 Hz
Max SPL: 138 dB
Directivity: Omnidirectional, Cardiod Option with DSP setup
LF: 18 "
Voice Coil LF: 4 "
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
Power Supply: 1.5 kW SMPS
LF Amp: 1500 W RMS
Cooling: Convection
Processor
Controller: DSP 56 bit
AD/DA Converter: 24bit/ 96 kHz
System Presets: X-Over,Delay
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: 0-4.5 ms internal
Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
LF-Xover out slope: 24 dB/Octave
Input
Mechanics
Housing: Multiplex birch plywood
Housing Design: Rectangular
Handles: 3x Per Side
Accessory: Dolly, Wheels 100mm, Dust Cover, Rain Cover
Pole Mount: M20
Rigging Points: integrated for SRK10 fly kit 2xPick Points on top to fix DRK10/20 rigging frames
Width: 515 mm (20.6 in)
Height: 640 mm (25.6 in)
Depth: 720 mm (28.8 in)
Weight: 46 kg (101.41 lbs)

Raspuns in frecventa (Hz) : 1500
Sensibilitate (dB) : 138
Dimensiune (mm) : 510x640x720
Greutate (kg) : 46
Unitate vinzare : buc

Manual PDFManual PDF

Data sheet

Raspuns in frecventa (Hz)1500.00
Sensibilitate (dB)138.00
Dimensiune (mm)510.00
